Appium Concepts : 🔥”Automate Battery and Power Testing” By Using Appium built-in methods “setPowerCapacity” & “setPowerAC”

Get a step-by-step walkthrough in the video below!

Appium provides two built-in device power control methods for Android emulators or rooted devices :

• setPowerCapacity
• setPowerAC

These are useful for simulating battery conditions in test automation — especially for apps that behave differently on low battery or charging states.

Appium Built-In Method : — .setPowerCapacity

Purpose: Simulates a specific battery charge percentage on the emulator or rooted device.

Basic Syntax:

//To Change the Battery charge levels
  driver.setPowerCapacity(n); // battery level: 0–100

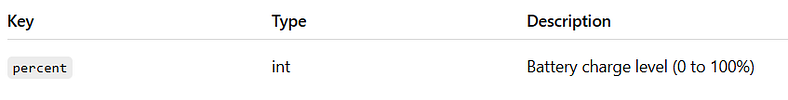

Parameters:

Example:

//To Change the Battery charge levels
  System.out.println("Change the Battery charge level to - 75%");
  driver.setPowerCapacity(75);

  System.out.println("Change the Battery charge level to 10%");
  driver.setPowerCapacity(10);

  System.out.println("Change the Battery charge level to 100%");
  driver.setPowerCapacity(100);


Appium Built-In Method : — .setPowerAC

Purpose: Simulates plugging/unplugging the device charger (AC power).

Basic Syntax:

//Unplug the device charger
  driver.setPowerAC(PowerACState.OFF);

//plug the device charger
  driver.setPowerAC(PowerACState.ON);

Parameters:

Example:

//Unplug the device charger
  System.out.println("Unplug the device charger -  'off' to simulate unplugged");
  driver.setPowerAC(PowerACState.OFF);

  //plug the device charger
  System.out.println("plug the device charger - 'on' to simulate charging");
  driver.setPowerAC(PowerACState.ON);

🧪 When to Use

1. Test low battery behavior
2. Test battery saver mode triggers
3. Test charging UI or behavior

⚠️ Notes

• Supported only on Android Emulators and some rooted physical Android devices.
• Not supported on iOS.
• Requires Appium server 2.x and compatible drivers (uiautomator2 or espresso).

“Complete Code: Optimized and Ready to Use”:

package com.appiumguide.appiumconcepts;

import org.apache.commons.io.FileUtils;
import org.openqa.selenium.OutputType;
import org.testng.annotations.AfterTest;
import org.testng.annotations.BeforeTest;
import org.testng.annotations.Test;

import io.appium.java_client.android.AndroidDriver;
import io.appium.java_client.android.PowerACState;
import io.appium.java_client.android.options.UiAutomator2Options;
import io.appium.java_client.imagecomparison.SimilarityMatchingOptions;
import io.appium.java_client.imagecomparison.SimilarityMatchingResult;
import java.io.File;
import java.io.IOException;
import java.net.*;
import java.nio.file.Files;
import java.time.Duration;
import java.util.Base64;

/**
 * Script Details - Appium Concepts : 🔥Automate Battery and Power Testing By Using Appium built-in methods setPowerCapacity +  setPowerAC
 *
 * appium-java-client version: Latest
 *
 * @author 'Ramesh Kodumuru' for AppiumGuide [appiumguide@gmail.com]
 */

@SuppressWarnings("unused")
public class PowerManagementDemo  {

 private AndroidDriver driver;

 @BeforeTest
 public void setup() throws MalformedURLException {
  UiAutomator2Options cap=new UiAutomator2Options();
  cap.setPlatformName("android");
  cap.setAutomationName("uiautomator2");
  cap.setDeviceName("Pixel9");

  driver = new AndroidDriver(new URL("http://127.0.0.1:4723"), cap);
  driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(100));

 }

 @Test
 public void test() throws InterruptedException, IOException {

  //To Change the Battery charge levels
  System.out.println("Change the Battery charge level to - 75%");
  driver.setPowerCapacity(75);
  Thread.sleep(5000);
  System.out.println("Change the Battery charge level to 10%");
  driver.setPowerCapacity(10);
  Thread.sleep(5000);
  System.out.println("Change the Battery charge level to 100%");
  driver.setPowerCapacity(100);
  Thread.sleep(5000);

  //Simulate the plugging/unplugging the device charger
  System.out.println("Simulate the plugging/unplugging the device charger");

  //Unplug the device charger
  System.out.println("Unplug the device charger -  'off' to simulate unplugged");
  driver.setPowerAC(PowerACState.OFF);
  Thread.sleep(8000);
  //plug the device charger
  System.out.println("plug the device charger - 'on' to simulate charging");
  driver.setPowerAC(PowerACState.ON);


 }


 @AfterTest
 public void teardown() {

  if(driver!=null) {
   //driver.quit();
   System.out.println("Test Completed");
  }

 }

}
