Appium Concepts | Appium Commands for “Power Management” -(UiAutomator2 driver(emulators)

Commands: — “mobile: powerAc” & “mobile: powerCapacity”

Please Watch below video for complete details:

Summary:

Topic-1:

Complete Details on Command “mobile: powerAc”:

Command : mobile: powerAC

Description: Emulate AC power state change. Only works on emulators. Available since driver version 2.22

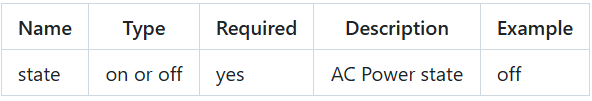

Arguments:

Usage:

//Power-ON the emulator.

  driver.executeScript("mobile: powerAc",ImmutableMap.of(
    "state","on"));

//Power-OFF the emulator.

  driver.executeScript("mobile: powerAc",ImmutableMap.of(
    "state","off"));

Java Code:

package demo;


import org.testng.annotations.AfterTest;
import org.testng.annotations.BeforeTest;
import org.testng.annotations.Test;

import com.google.common.collect.ImmutableMap;

import io.appium.java_client.android.AndroidDriver;
import io.appium.java_client.android.options.UiAutomator2Options;
import java.net.*;
import java.time.Duration;

/**
 * Script Details - Appium commands for “Power Management” - (UiAutomator2 driver(emulators) using commands - "mobile: powerAc" & "mobile: powerCapacity"
 *
 * appium-java-client version: 9.3.0
 *
 * @author 'Ramesh Kodumuru' for AppiumGuide [appiumguide@gmail.com]
 */

/*
Scenario's will be covered in the video:
-----------------------------------------
1. Change the power capacity (AC Power State)
2. Power-ON the emulator.
3. Power-OFF the emulator.
*/

public class PowerManagementDemo {

 private AndroidDriver driver;

 @BeforeTest
 public void setup() throws MalformedURLException {
  UiAutomator2Options cap=new UiAutomator2Options();
  cap.setPlatformName("android");
  cap.setAutomationName("uiautomator2");
  cap.setDeviceName("Pixel8Pro");


  driver = new AndroidDriver(new URL("http://127.0.0.1:4723"), cap);
  driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(100));

 }

 @Test
 public void test() throws InterruptedException {


  //Scenario-1: Change the power capacity (AC Power State)
  System.out.println("Scenario-1: Change the power capacity (AC Power State)");

  driver.executeScript("mobile: powerCapacity",ImmutableMap.of(
    "percent","77"));


  //Scenario-2: Power-ON the emulator.
  System.out.println("Scenario-2: Power-ON the emulator.");

  driver.executeScript("mobile: powerAc",ImmutableMap.of(
    "state","on"));

  //Scenario-3: Power-OFF the emulator.

  System.out.println("Power-OFF the emulator.");

  driver.executeScript("mobile: powerAc",ImmutableMap.of(
    "state","off"));



 }


 @AfterTest
 public void teardown() {

  if(driver!=null) {
   driver.quit();
   System.out.println("Test Completed");
  }

 }

}

Topic-2:

Complete details on Command- “mobile: powerCapacity”:

Command : mobile: powerCapacity

Description: Emulate power capacity change. Only works on emulators. Available since driver version 2.22

Arguments:

Usage:

//Change the power capacity (AC Power State)

  driver.executeScript("mobile: powerCapacity",ImmutableMap.of(
    "percent","77"));

Java Code:

package demo;


import org.testng.annotations.AfterTest;
import org.testng.annotations.BeforeTest;
import org.testng.annotations.Test;

import com.google.common.collect.ImmutableMap;

import io.appium.java_client.android.AndroidDriver;
import io.appium.java_client.android.options.UiAutomator2Options;
import java.net.*;
import java.time.Duration;

/**
 * Script Details - Appium commands for “Power Management” - (UiAutomator2 driver(emulators) using commands - "mobile: powerAc" & "mobile: powerCapacity"
 *
 * appium-java-client version: 9.3.0
 *
 * @author 'Ramesh Kodumuru' for AppiumGuide [appiumguide@gmail.com]
 */

/*
Scenario's will be covered in the video:
-----------------------------------------
1. Change the power capacity (AC Power State)
2. Power-ON the emulator.
3. Power-OFF the emulator.
*/

public class PowerManagementDemo {

 private AndroidDriver driver;

 @BeforeTest
 public void setup() throws MalformedURLException {
  UiAutomator2Options cap=new UiAutomator2Options();
  cap.setPlatformName("android");
  cap.setAutomationName("uiautomator2");
  cap.setDeviceName("Pixel8Pro");


  driver = new AndroidDriver(new URL("http://127.0.0.1:4723"), cap);
  driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(100));

 }

 @Test
 public void test() throws InterruptedException {


  //Scenario-1: Change the power capacity (AC Power State)
  System.out.println("Scenario-1: Change the power capacity (AC Power State)");

  driver.executeScript("mobile: powerCapacity",ImmutableMap.of(
    "percent","77"));


  //Scenario-2: Power-ON the emulator.
  System.out.println("Scenario-2: Power-ON the emulator.");

  driver.executeScript("mobile: powerAc",ImmutableMap.of(
    "state","on"));

  //Scenario-3: Power-OFF the emulator.

  System.out.println("Power-OFF the emulator.");

  driver.executeScript("mobile: powerAc",ImmutableMap.of(
    "state","off"));



 }


 @AfterTest
 public void teardown() {

  if(driver!=null) {
   driver.quit();
   System.out.println("Test Completed");
  }

 }

}

GitHub Link:
